Container Specification

CONTAINER SPECIFICATION

20ft STANDARD DRY FREIGHT CONTAINER

20ft Dry Container is designed and constructed for intermodal freight transportation of non-perishable cargo on sea (above or under deck) and on land (road or rail) throughout the world.

External Length20 ft
External Width8 ft
External Height8 ft 6 ins
Internal Length19 ft 4 ins
Internal Width7 ft 9 ins
Internal Height7 ft 10 ins
Door Opening Width7 ft 8 ins
Door Opening Height7 ft 6 ins
Cubic Capacity1,170 ft3
Maximum Gross Weight30,480 kgs
Tare Weight2,080 kgs
Payload Weight28,400 kgs

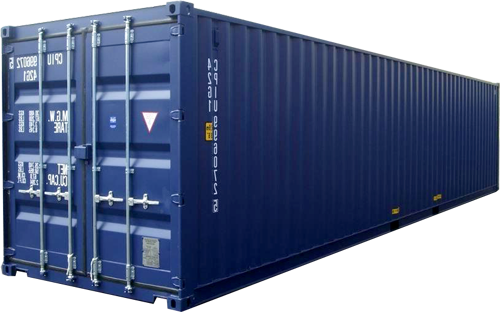

40ft STANDARD DRY FREIGHT CONTAINER

40ft Dry box designed and constructed for intermodal freight transportation of lighter weight cargo on sea (above or under deck) and on land (road or rail), where 8ft 6ins is a required height constraint.

External Length40 ft
External Width8 ft
External Height9 ft 6 ins
Internal Length39 ft 6 ins
Internal Width7ft 9 ins
Internal Height7 ft 10 ins
Door Opening Width7 ft 8 ins
Door Opening Height7 ft 6 ins
Cubic Capacity2,390 ft3
Maximum Gross Weight32,500 kgs
Tare Weight3,500 kgs
Payload Weight29,000 kgs

20ft OPEN TOP CONTAINER

20ft Open Top container designed for the carriage of over-height and dense cargo, combining flexibility and safety for top and rear loading.

External Length20ft
External Width8 ft
External Height8 ft 6 ins
Internal Length19 ft 4 ins
Internal Width7 ft 9 ins
Internal Height7ft 8 ins
Door Opening Width7ft 8 ins
Door Opening Height7ft 6 ins
Cubic Capacity1,150 ft3
Maximum Gross Weight30,480 kgs
Tare Weight2,150 kgs
Payload Weight28,330 kgs

40ft OPEN TOP CONTAINER

Designed for the carriage of over-height, light weight and bulky cargo, combining flexibility and safety for top and rear loading.

External Length40 ft
External Width8 ft
External Height8ft 6 ins
Internal Length39 ft 6 ins
Internal Width7 ft 9 ins
Internal Height7 ft 8 ins
Door Opening Width7 ft 8 ins
Door Opening Height7 ft 6 ins
Cubic Capacity2,345 ft3
Maximum Gross Weight32,500 kgs
Tare Weight3,650 kgs
Payload Weight28,850 kgs

40ft FLATRACKS CONTAINER

Suitable for the carriage of large and heavy items such as boats, lumber and machinery.

External Length (Base Bottom Casting)40 ft
External Width (Base Bottom Casting)8 ft
External Height (End Frame Erected)8 ft 6 ins
External Height (End Frame Folded)25 ft 2 ins
Internal Length (Between End Panels)39 ft 7 ins
Internal Length (Between Corner Posts)38 ft 3 ins
Internal Width (Over Bottom Side Posts)7 ft 9 ins
Internal Width (Between Corner Posts)7 ft 3 ins
Internal Loading Height Above Floor6 ft 5 ins
Maximum Gross Weight52,500 kgs
Tare Weight5,100 kgs
Payload Weight47,400 kgs
Concentrated Load (over centre 2m span)30,000 kgs



Stacking Height8 High at 30,480 kgs
Stacking Height5 High at 52,500 kgs



Forklift Pocket Centres6 ft 9 ins
Forklift Pocket Height4.75 ins
Forklift Pocket Width1 ft 2 ins



Camber After Pre-loading2 ins

20ft FLATRACKS CONTAINER

20ft Flush Folding Flatrack is suitable for the carriage of large and heavy items, for example, boats, lumber and machinery.

External Length (Base Bottom Casting)20 ft
External Width (Base Bottom Casting)8 ft
External Height (End Frame Erected)8 ft 6 ins
External Height (End Frame Folded)1 ft 3 ins
Internal Length (Between End Panels)19 ft 10 ins
Internal Length (Between Corner Posts)18 ft 6 ins
Internal Width (Over Bottom Side Rail)7 ft 2 ins
Internal Width (Between Corner Posts)7 ft 4 ins
Maximum Gross Weight34,000 kgs
Tare Weight2,800 kgs
Payload Weight31,200 kgs
Concentrated Load (over centre 2m span)20,000 kgs
Above Floor7ft 4 ins
Stacking Height7 high at 74,960 lbs
Forklift Pocket Centres6 ft 9 ins
Forklift Pocket Height4.75 ins
Forklift Pocket Width1 ft 2 ins
Camber After Pre-loading0.6 ins

20ft REFRIGERATED CONTAINERS

20ft Refrigerated cargo container, designed for heavy refrigerated cargo or where the 20ft size type better suits the reefer operation.

External Length20 ft
External Width8 ft
External Height8 ft 6 ins
Internal Length17 ft 11 ins
Internal Width7 ft 6 ins
Internal Height7 ft 5 ins
Door Opening Width7ft 6 ins
Door Opening Height7 ft 6 ins
Cargo Access Height7 ft 3 ins
Cubic Capacity999 ft3
Heat Leakage kcal/deg.c.hr23
Maximum Gross Weight30,480 kgs
Tare Weight (excluding machinery)2,500 kgs
Tare Weight (including Machinery)2,880 kgs
Payload Weight27,600 kgs
Maximum Gross Weight30,480 kgs
Tare Weight (excluding machinery)2,470 kgs
Tare Weight (including Machinery)2,980 kgs
Payload Weight27,500 kgs



40FT High Cube (Carrier) refrigerated container

40ft High Cube refrigerated cargo container, designed and constructed to a robust, reliable specification to allow for the carriage of lighter voluminous temperature sensitive cargo.

External Length40 ft
External Width8 ft
External Height9 ft 6 ins
Internal Length38 ft
Internal Width7 ft 6 ins
Internal Height8 ft 4 ins
Door Opening Width7 ft 6 ins
Door Opening Height8 ft 6 ins
Cargo Access Height8 ft 3 ins
Cubic Capacity2,380 ft3
Heat Leakage kcal/deg.c.hr38.5
Maximum Gross Weight35,000 kgs
Tare Weight (excluding machinery)4,160 kgs
Tare Weight (including machinery)4,540 kgs
Payload Weight30,460 kgs
Maximum Gross Weight35,000 kgs
Tare Weight (excluding machinery)4,160 kgs
Tare Weight (including machinery)4,640 kgs
Payload Weight30,360 kgs



40ft High Cube (Daikin) refrigerated container

40ft High Cube refrigerated cargo container, designed and constructed to a robust, reliable specification to allow for the carriage of lighter voluminous temperature senstive cargo.

External Length40 ft
External Width8 ft
External Height9 ft 6 ins
Internal Length38 ft
Internal Width7 ft 6 ins
Internal Height8 ft 4 ins
Door Opening Width7 ft 6 ins
Door Opening Height8 ft 6 ins
Cargo Access Height8 ft 3 ins
Cubic Capacity2,380 ft3
Heat Leakage kcal/deg.c.h.r38.5

Maximum Gross Weight35,000 kgs
Tare Weight (excluding machinery)4,160 kgs
Tare Weight (including machinery)4,580 kgs
Payload Weight30,420 kgs
